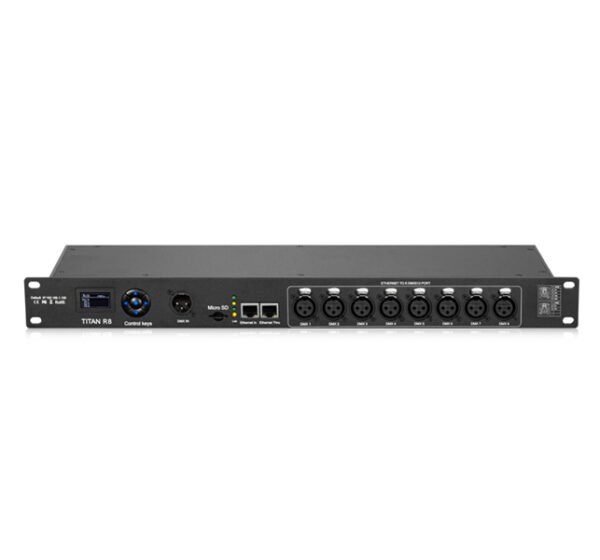

Titan A8 / Streaming ACN to DMX/RDM node1DMX-IN+8DMX-OUT Record any Art-Netstream onto the SD Card
Art-Net/Streaming ACN
Art-Net or Streaming ACN data is directly converted to DMX512
1DMX-IN+8DMX/RDM-Out
8 Physical outputs,and 1to 4Universes for each DMX Output
RDM
Each output support RDM
Ethernet in and Thru for Daisy Chain
Live Recording
Record any Art-Net or Streaming ACN network stream onto the inserted memory card.

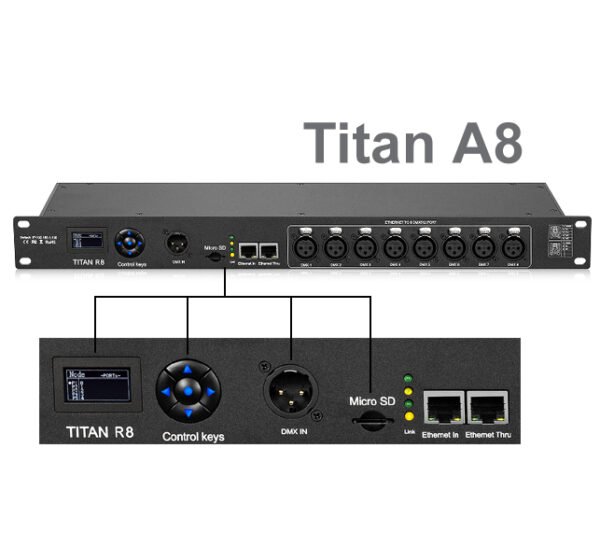

OED Screen or Web Configuration
Use OLED Screen or the built-in web configuration page to change specific device settings, such as the important IP address, universes, playlist settings, and much more.
Master-Slave Synchronization
Manage large projects simply by connecting several units.
| Models | TITAN A8 |
| Electrical | |
| Input Voltage | 100-240VAC50/60Hz
C14 inlet |
| Power Consumption | <5W during operation |
| Control | |
| Network Protocols | Art-Net/Streaming ACN |
| DMX Outputs | 8 Outputs(Each output 512DMX Channels) |
| DMX In | 1X512 DMX Channels input |
| Ethernet | RJ45 |
| Default IP | 192.168.1.100 |
| Default Subnet | 255.255.255.0 |
| Physical | |
| Housing Material | Metal |
| Finish Color | Black |
| Connector | 3pin/5pin xlr female |
| Dimensions(LXWxH) | 483×125x45mm(1U) |
| Weight | |
| Environment | |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +70℃ |
| Humidity | 0-80% non-condensing |
| IP Rating | Dry, Indoor IP20 |
| Certification | CE |
| Warranty | 2Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty |
