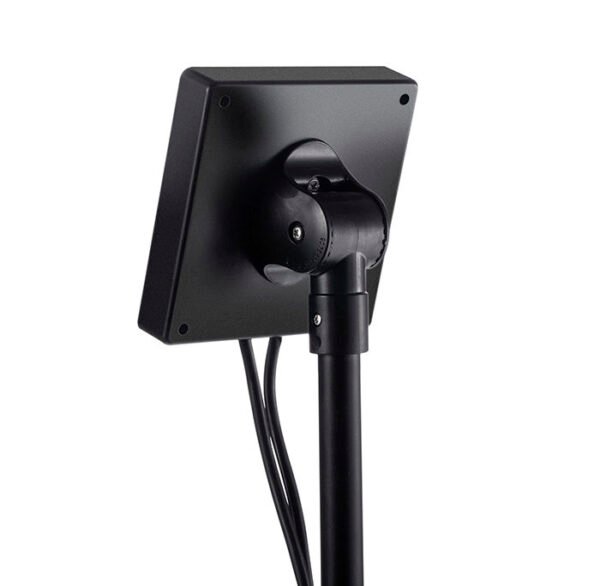

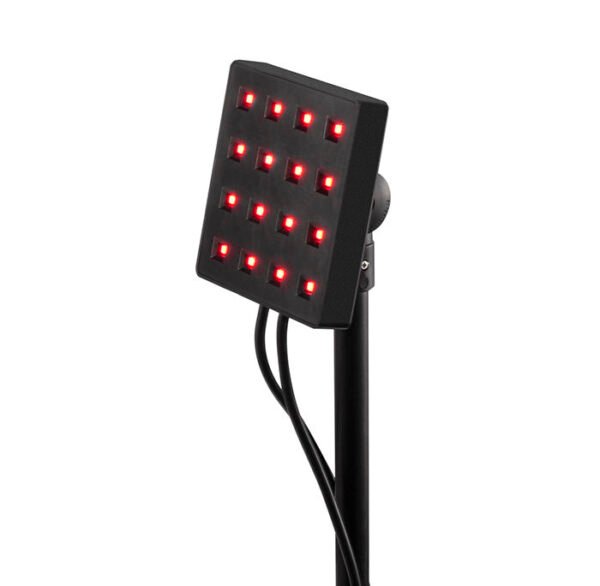

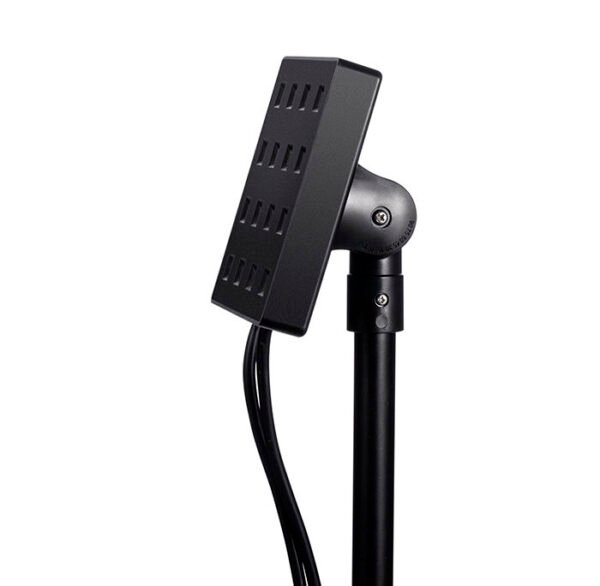

Olympic DMX Panel- DP1201603
This DMX Panel is designed for Events,Stadium Games,Stage and so on。
High-Brightness IPX6 SMD RGB LEDs are used on this panel
Apply solid capacitor and other good brand components on PCB for long life time.
Save 40% power with more efficient power management design.
With wide voltage range design, LED color always keep same brightness after long distance power supply.
Standard DMX512 control protocol (Max 44frames/second).
The communication between tubes is synchronized perfectly under support of Colordreamer Artnet Controller.
Lightning and ESD Protection
Electrical Protections: short circuit, over current, over voltage and over temperature.
| Models | DP1201603 |
| LED | |
| Color | RGB |
| Light Source | Epistar LED |
| Color | R:619-624nmG:520-540nm
B:460-480nm |
| LED QTY | 16LEDs |
| Performance | |
| Lumen Output | Update soon |
| Efficacy | Update soon |
| Beam Angle | 115° |
| Electrical | |
| Input Voltage | 15-24VDC |
| Power Consumption | 3W |
| Control | |
| Protocols | DMX512 Control |
| PWM Frequency | 1KHz@16-Bit Grayscale/256KHz@8-Bit Grayscale |
| Addressing | Auto Addressing |
| DMX Channels | 3Channels |
| Physical | |
| Material | PC |
| Finish Color | Black |
| Optics | Open |
| Dimensions (LXWxH) | 120*120mm |
| Cable Entry | Bottom Entry |
| Environment | |
| Operating Temperature | -30℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 0-90% non-condensing |
| IP Rating | Dry, Damp, Wet locations IP66 |
| Certification and Safety | |
| Certification | CE |
| Warranty | 2Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty |
