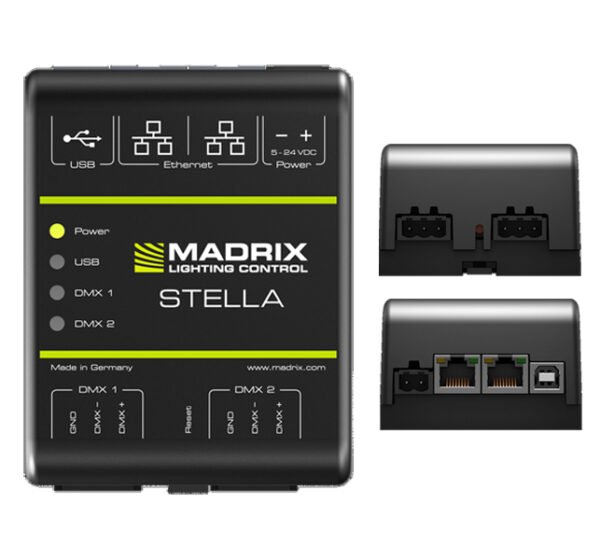

Madrix STELLA – 2-port node with RDM
- Art-Net / Streaming ACN / USB
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network. - Designed For DIN Rails Or Walls
- Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting.

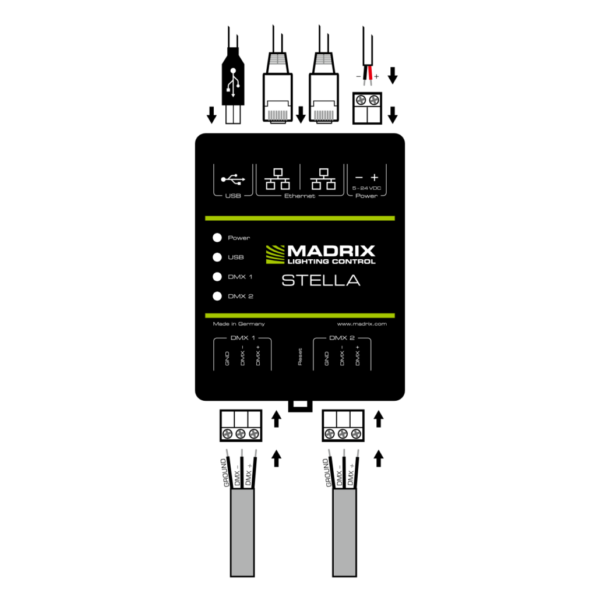

- 2 DMX-IN/OUT
Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects. - RDM & Daisy-Chain Support
- 2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together. On top, the device supports the Remote Device Management standard.
| Models | Madrix STELLA |
| Electrical | |
| Input Voltage | DC5-24V |
| Power Consumption | <1.5W |
| Control | |
| Network Protocols | Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31) |
| RDM Role | Transmits commands and requests to RDM Responders and back (Art-Net Node / RDM Controller) |
| DMX512 | 2x 512 DMX channels, input and/or output (Automatically set per port) |
| Ports | 2x ports (Via 2x 3-pin, pluggable screw terminals) |
| Ethernet Switch | Lookup Table (ALU) for 1,024 unicast MAC addresses |
| Ethernet | 2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s) |
| USB | 1x port, USB 2.0, type-B female socket |
| Handling | 5 status LEDs (+ 4 network status LEDs) |
| Physical | |
| Housing Material | Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting |
| Finish Color | Black |

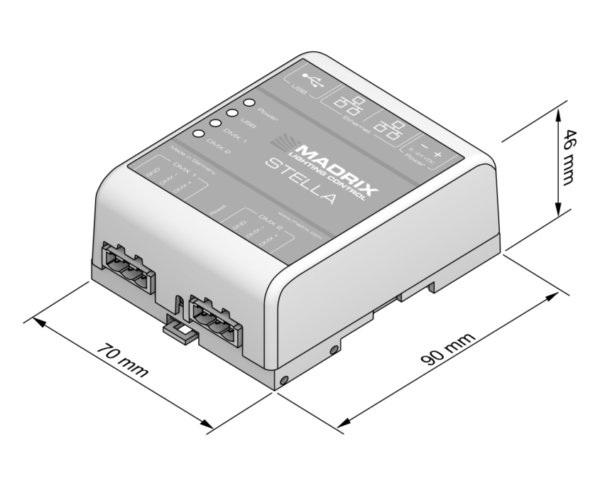

| Dimensions(LXWxH) Body | 90 mm × 70 mm × 46 mm |
| Weight | 108 g (0.24 lb) | 125 g (0.28 lb) incl. screw terminals and wall mounts |
| Environment | |
| Operating Temperature | -10℃ to +70℃ |
| Storage Temperature | -20℃ to +85℃ |
| Humidity | 5-80% non-condensing |
| IP Rating | Dry, Indoor IP20 |
| Certification | CE, EAC, FCC, RoHS |
| Warranty | 3Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty |
