LED Spot Light White/RGBW SP100
The Colordreamer SP is a DC or AC Version exterior luminaire to light the facades,walls,and landmarks with powerful color washer effects.
| Models | SP1000601 | SP1000604 |
| LED | ||
| Color | Static White | RGBW |
| Light Source | High Power LED | High Power LED |
| LED Source Color | 2700K3000K
4000K 5700K 6500K |
R:618-628nmG:525-535nm
B:465-475nm W:3000K/4000K/6500K |
| Color Consisitency | 3 SDCM | N.A |
| CRI for White LED | Ra>80 | Ra>80 |
| Lumen maintenance | L70B10>50,000hours | N/A |
| LED QTY | 6LEDs | 6LEDs |
| Performance | ||
| Lumen Output | 1200lm | 480lm |
| Efficacy | 50lm/W based at 3000K | 50lm/W based at 3000K |
| Beam Angle | 30° Wide45° Wide
60° Wide |
30° Wide45° Wide
60° Wide |
| Electrical | ||
| Input Voltage | 220-240VAC | 24VDC |
| Power Consumption | 18W | 21W |
| Control | ||
| Protocols | Light On/Off | DMX512 |
| Addressing | N/A | Manual addresing with CD Smart addresser |
| Physical | ||
| Housing | 6063 high density extruded aluminium alloy | |
| Lens | 4mm Tempered Glass | |
| Finish | Powder coating, Black/White/Grey or Custom RAL Color | |

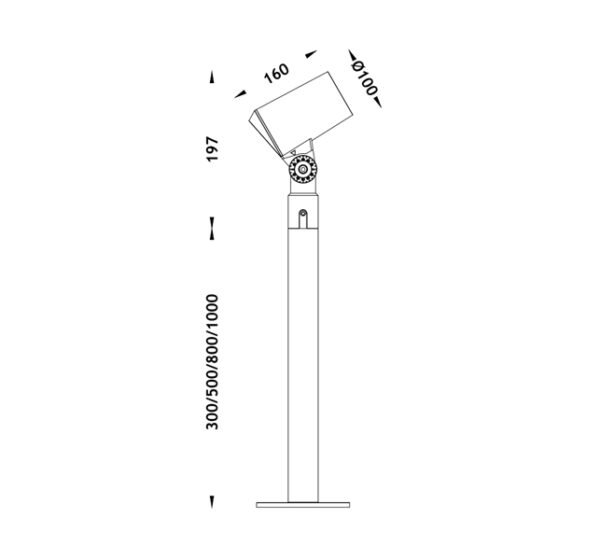

| Dimensions(LXWxH) | 100x160x231mm | |
| Cable Entry | Bottom Entry | |
| Mounting | Surface Mounting | |
| Environment | ||
| Operating Temperature | -30℃ to +50℃ | |
| Storage Temperature | -40℃ to +70℃ | |
| Humidity | 0-90% non-condensing | |
| IP Rating | Dry, Damp, Wet locations IP67 | |
| Certification and Safety | ||
| Certification | CE | |
| Warranty | 3Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty | |
