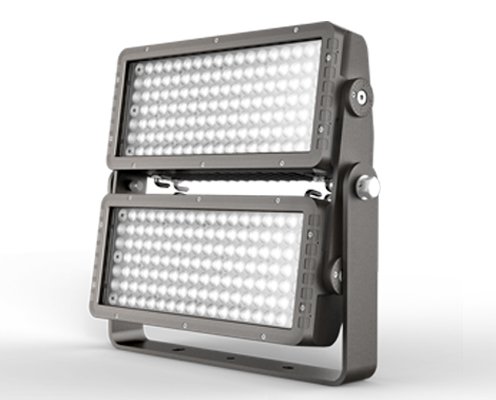

F490D Static White/RGBW 120-277VAC 300W On-Off/DMX-RDM
This LED Flood Light is designed for architectural Facade, bridge and so on.
It can deliver high efficiency light output and uniform beam with professional lense.
We used Top Brand Silicone for better heatconduction, strong temperature withstand and perfect waterproof performance.
Apply solid capacitor and other good brand components on PCB for long life time.
Save 40% power with more efficient power management design.
With wide voltage range design,LED color always keep same brightness after long distance power supply.
Standard DMX512 control protocol(Max 44frames/second).
The communication between lights are synchronized perfectly under support of Colordreamer Artnet Controller.
Lightning and ESD Protection
Electrical Protections: short circuit, over current, over voltage and over temperature.
| Models | F4907201 | F4907204 | F4904004 |
| LED | |||
| Color | Static White | RGBW | RGBW 4IN1 |
| Light Source | High Power LED | High Power LED | High Power LED |
| LED Source Color | 3000K4000K
5700K 6500K |
R:620-630nmG:520-535nm
B:450-465nm W:3000K/ 4000K/5700K/6500K |
R:620-630nmG:520-535nm
B:450-465nm W:3000K/ 4000K/5700K/6500K |
| CRI for White LED | Ra>80 | Ra>80 | Ra>80 |
| LED QTY | 2 X 72LEDs | 2 X 72LEDs（36R+36G+36B+36W） | 2 X 40pcs RGBW 4IN1 |
| Performance | |||
| Lumen Output | 2 X 12800lumen | 2 X 11600lumen | |
| Efficacy | 80lm/W based at W3000K | 58lm/W based at W3000K | 58lm/W based at W3000K |
| Beam Angle | 8°Very Narrow12°Spot Beam
20°Spot Beam 30°Medium Beam 45°Wide Beam |
8°Very Narrow12°Spot Beam
20°Spot Beam 30°Medium Beam 45°Wide Beam |
8°Very Narrow12°Spot Beam
20°Spot Beam 30°Medium Beam 45°Wide Beam |
| Electrical | |||
| Input Voltage | 120-277VAC | 120-277VAC | 120-277VAC |
| Power Consumption | 300W | 300W | 300W |
| Control | |||
| Protocols | Light On/OffDMX-RDM | DMX-RDM | DMX-RDM |
| Addressing | Set up by Colordreamer addressing tool | ||
| Physical | |||
| Housing | Die cast aluminum | ||
| Cover lens | Tempered glass | ||
| Housing Finish | Deep Gray or Black | ||
| Dimensions(LXWxH) | 554X173X501mm | ||
| Cable Entry | Bottom entry | ||
| Mounting | Surface Mounting | ||
| Accessory | Glare shield | ||
| Environment | |||
| Operating Temperature | -30℃ to +50℃ | ||
| Storage Temperature | -40℃ to +70℃ | ||
| Humidity | 0-90% non-condensing | ||
| IP Rating | Outdoor, IP66 | ||
| Certification and Safety | |||
| Certification | CE | ||
| Warranty | 3Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty | ||
