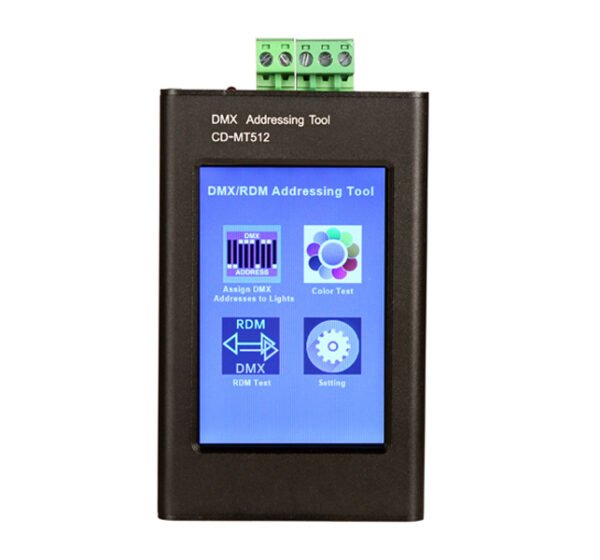

DMX /RDM Addressing Tool-CD-MT512
The CD-MT512 is a powerful DMX Addressing and test tool.it allows for DMX Addressing and Color testing of Lighting products. This Tool is a must for anyone involved with DMX512 installation.
| Models | CD-MT512 |
| Electrical | |
| Input Voltage | 12-48VDC |
| USB Port | USB Type C, cable not included |
| Power Consumption | 2W |
| Display | 3.5-inch (diagonal) all-screen LCD Multi-Touch display |
| Control | |
| DMX Outputs | 512 DMX Channels |
| Physical | |
| Housing Material | Aluminium |
| Finish Color | Black |
| Connector | Removable multi-pin terminal blocks |
| Dimensions(LXWxH) Body | 114X71.2X24.8mm |
| Weight | 200g |
| Environment | |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +70℃ |
| Humidity | 0-80% non-condensing |
| IP Rating | Dry, Indoor IP20 |
| Certification | CE |
