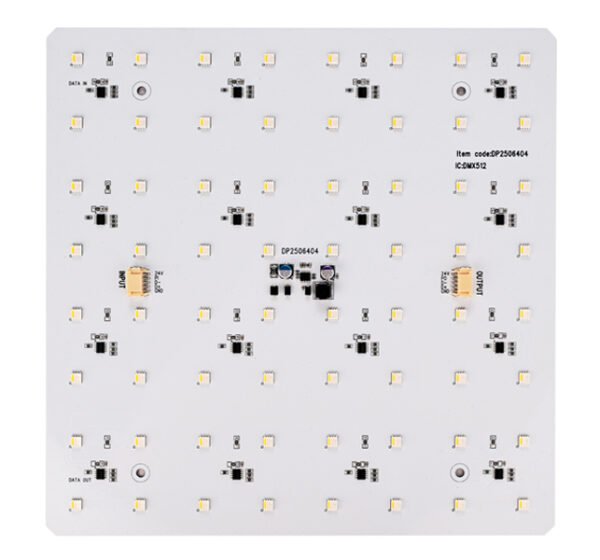

DMX Pixel Panel RGBW – DP2506404
The Colordreamer DP250 LED Pixel Board features 16 individually controllable pixels on a 8 X 8 matrix with 62.5mm pitch.
Dimension for each panel is 250X250mm.
| Models | DP2506404 |
| LED | |
| Color | RGBW |
| Light Source | Epistar LED |
| Color | R:619-624nmG:520-540nm
B:460-480nm W:3000K/4000K/6500K |
| LED QTY | 64LEDs |
| Performance | |
| Lumen Output | Update soon |
| Efficacy | Update soon |
| Beam Angle | 115° |
| Electrical | |
| Input Voltage | 15-24VDC |
| Power Consumption | 10W |
| Control | |
| Control Protocols | DMX512 |
| PWM Frequency | 16-Bit Grayscale |
| Pixels | 16Pixels |
| Addressing | Auto Addressing by daisy chain |
| Physical | |
| Material | FR4 PCB Board |
| Finish Color | White |
| Optics | N/A |
| Dimensions (LXWxH) | 250*250mm |
| Cable Entry | Side Entry |
| Mounting | Surface Mount |
| Environment | |
| Operating Temperature | -30℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 0-90% non-condensing |
| IP Rating | Dry, Indoor/IP20 |
| Certification and Safety | |
| Certification | CE |
| Warranty | 2Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty |
