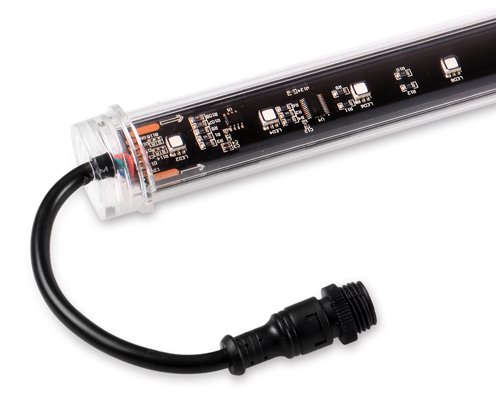

DMX 3D Clear Tube-TC100

This DMX 3D Clear Tube can be suspended from the ceiling horizontally and vertically in club, stage, events and so on.

Double side lighting effects can be seen from 360degree.

2D pixel mapping can be transformed to be 3D with the help of software programming.

Apply solid capacitor and other good brand components on PCB for long life time.

Save 40% power with more efficient power management design.

With wide voltage range design, LED color always keep same brightness after long distance power supply.

Standard DMX512 control protocol (Max 44frames/second).

The communication between tubes is synchronized perfectly under support of Colordreamer Artnet Controller.

Lightning and ESD Protection

Electrical Protections: short circuit, over current, over voltage and over temperature.

Category:
Models TC050 TC100 TC150 TC200
LED
Color RGB RGB RGB RGB
Light Source EpistarSMD 5050 LED EpistarSMD 5050 LED EpistarSMD 5050 LED EpistarSMD 5050 LED
LED Source Color R:620-630nmG:520-530nm

B:460-470nm

R:620-630nmG:520-530nm

B:460-470nm

R:620-630nmG:520-530nm

B:460-470nm

R:620-630nmG:520-530nm

B:460-470nm

LED QTY 32LEDs 64LEDs 96LEDs 128LEDs
Performance
Lumen Output Update soon Update soon Update soon Update soon
Efficacy Update soon Update soon Update soon Update soon
Beam Angle 360° Clear Cover
Electrical
Input Voltage 15-24VDC 15-24VDC 15-24VDC 15-24VDC
Power Consumption 5W 10W 15W 20W
Control
Protocols DMX512 DMX512 DMX512 DMX512
PWM Frequency 256KHz@8-Bit Grayscale
Addressing Manual Addressing with Colordreamer addressing tool
Pixels 8Pixels 16Pixels 24Pixels 32Pixels
Physical
Material PC
Cover Clear
Diameter 30mm
Length 500mm/1000mm/1500mm/2000mm
Cable Entry Top Entry
Mounting Suspended
Mounting Orientation Horizontally or vertically
Packing 50pcs 1000mm per Box. Package Size 125*30*26
Environment
Operating Temperature -30℃ to +50℃
Storage Temperature -40℃ to +70℃
Humidity 0-90% non-condensing
IP Rating Dry, Damp, Wet locations IP66
Certification and Safety
Certification CE
Warranty 2Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty
