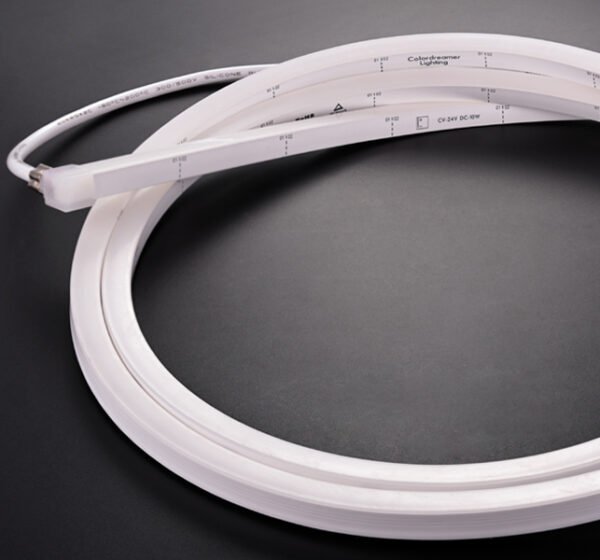

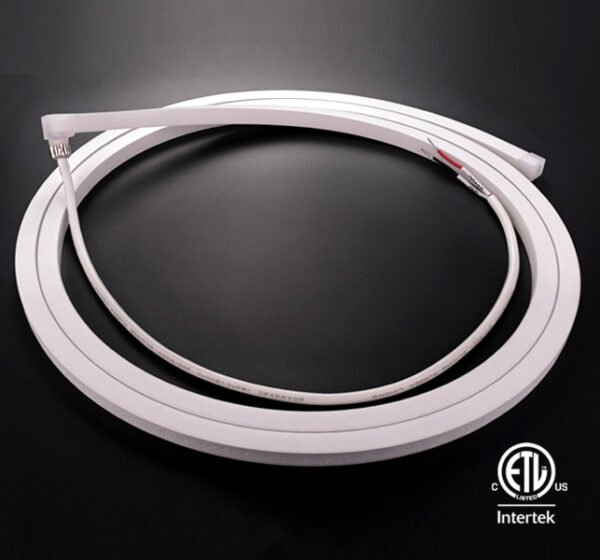

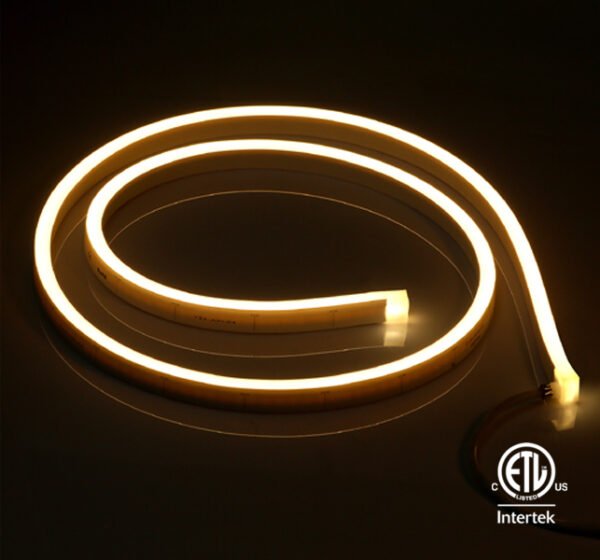

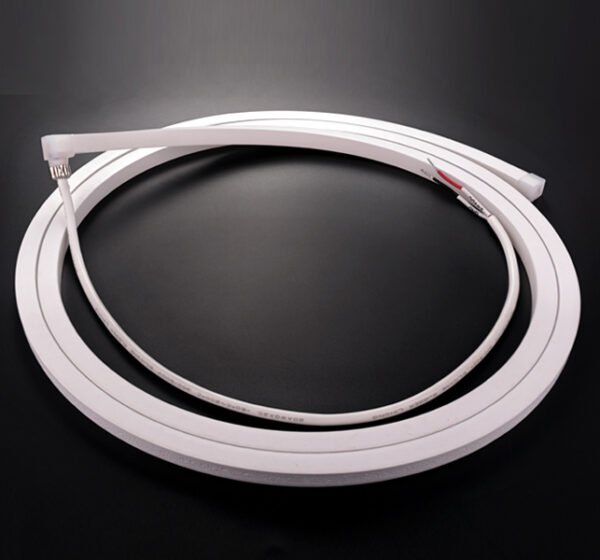

10X10mm/Mono Color On-off only/HB or VB
The strip provides flexibility to fit on any curved surface.
LED is packaged with pure gold thread and large chips.
IP20 and IP67 Version available
Each strip is equipped with a 3M double-sided adhesive tape.
This RGB strip can be dimmed by PWM driver.
| Models | LX281006001 | LX2810012002 | LX281006003 | LX2810012004 |
| LED | ||||
| Color | Static White | Tunable White | RGB | RGBW |
| Light Source | SMD 3535 LED | SMD 3535 LED | SMD 3535 LED | SMD 3535 LED |
| LED Source Color | W:3000KW:4000K
W:5700K |
W:3000KW:5700K | R:619-624nmG:520-540nm
B:460-480nm |
R:619-624nmG:520-540nm
B:460-480nm W:3000K/4000K/5700K/ |
| CRI for White LED | Ra>80 | Ra>80 | – | Ra>80 |
| LED QTY | 60LEDs/m | 120LEDs/m | 60LEDs/m | 120LEDs/m |
| Performance | ||||
| Lumen Output | Update soon | Update soon | Update soon | 844lumen/Clear@CREE RGBW(W3000K)
415lumen Acrylic Top @CREE RGBW(W3000K) |
| Efficacy | Update soon | Update soon | Update soon | 85lumen/W Clear @CREE RGBW(W3000K)41.5lumen/W Acrylic @CREE RGBW(W3000K) |
| Beam Angle | 110° Clear Cover165° Black Cover/Opal Cover/Acrylic Cover | |||
| Electrical | ||||
| Input Voltage | 15-24VDC | 15-24VDC | 15-24VDC | 15-24VDC |
| Power Consumption | 10W/Meter3W/ft | 10W/Meter3W/ft | 10W/Meter3W/ft | 10W/Meter3W/ft |
| Control | ||||
| Protocols | DMX512 | DMX512 | DMX512 | DMX512 |
| PWM Frequency | 1KHz@16-Bit Grayscale256KHz@8-Bit Grayscale | |||
| Addressing | Auto Addressing or RDM Manual Addressing with Colordreamer addressing device | |||
| Pixels | 20Pixels/m10Pixels/m
5Pixels/m 1Pixel/m |
10Pixels/m5Pixels/m
1Pixel/m |
20Pixels/m10Pixels/m
5Pixels/m 1Pixel/m |
10Pixels per meter5Pixels per meter
1Pixel per meter |
| Physical | ||||
| Material | Aluminum 6063 with UV Protected Cover | |||
| Finish Color | Powder coating, Black/Grey Silver or Custom RAL Color | |||
| Cover | Clear/PC Black/PC Opal/Acrylic | |||
| Dimensions(LXWxH)With Brackets | 1000mm*39mm*61.7mm(for Clear Cover)1000mm*28.5mm*75mm(for PMMA Dome)
1000mm*28.5mm*81mm(for PC Dome) |
|||
| Length | 250mm/500mm/1000mm/305mm/610mm/915mm/1200mm | |||
| Cable Entry | Bottom Entry, Side Left Entry or Side Right Entry | |||
| Mounting | Fixed Mounting BracketsContact us if you need customized brackets | |||
| Mounting Orientation | Horizontal or vertical | |||
| Packing | 20pcs 1000mm per Box. Package Size 103*29.5*26cm20pcs 1220mm per Box. Package Size 125*29.5*26cm | |||
| Environment | ||||
| Operating Temperature | -30℃ to +50℃ | |||
| Storage Temperature | -40℃ to +70℃ | |||
| Humidity | 0-90% non-condensing | |||
| IP Rating | Dry, Damp, Wet locations IP66 | |||
| Certification and Safety | ||||
| Certification | CE/ETL | |||
| Warranty | 2Years Limited Warranty from the Date of ManufactureContact us if you need extended warranty | |||
